C091 31H008 100 4 U

Description

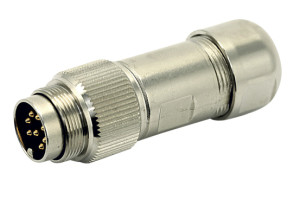

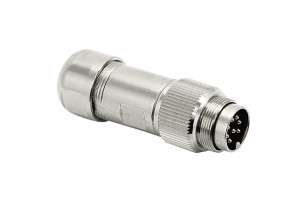

Male cable connector 8 pole IP69K; solder; silver; straight; screwlocking
IP-class mated
IP69k

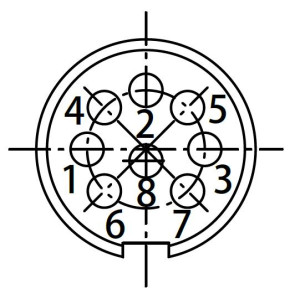

number of positions (w/o PE)
8

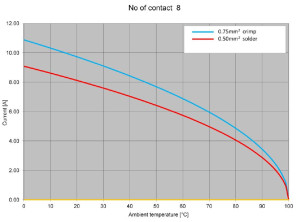

rated current (40 °C)
7 (A)
rated voltage
100 (V)
active


10,34 €
price
Total price
517,00 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender male
IP-class mated IP69k
locking system screw coupling
maximum cable diameter (MM) 6
minimum cable diameter (MM) 4
number of positions (w/o PE) 8
part category male cable connector
termination solder pin
Further Characteristics
max. wire gauge 0.5
min. wire gauge 0.05
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 7
rated voltage (V) 100
Downloads
m-c091-31hxxx-x00-4-u-rev04-cdr.pdf
c091-31h008-100-4-unxc001-01-c3d.stp
m-c091-31hxxx-100-4-u-02-rev01-cdr.pdf

Matching contacts
