Mini Manual Service Disconnect

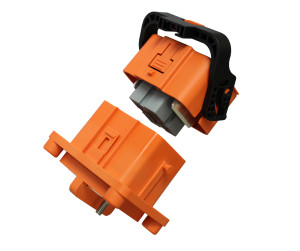

Amphenol's Mini-Manual Service Disconnect (Mini-MSD) has been developed to meet the specific requirements of plug-in hybrid vehicle (PHEV) charging. Equipped with a high-voltage interlock loop (HVIL), this connector enables safe disconnection of the high-voltage contacts by means of a two-stage lever that opens the HVIL circuit before disconnection occurs. This ensures reliable disconnection of the internal high-voltage batteries without the need for special tools, while protecting the battery from short circuits.

Thanks to its unique cooling structure and dual-channel design, the Mini-MSD helps to reduce temperature rise, while its versatile mounting option allows the socket to be mounted both front and rear. With a durability of over 50 mating cycles, the Mini-MSD offers a reliable and long-lasting solution for servicing PHEV vehicles.

Advantages at a glance:

  • Integrated internal HVIL

  • Unique cooling structure

  • Dual-channel design reduces temperature rise

  • Socket can be mounted at the front or rear

  • Durability of over 50 mating cycles

  • Complies with IP67 and IP6K9K ratings

  • Operating temperature from -40°C to 70°C

  • Complies with standards such as USCAR-2, USCAER-37 and LV-215

For more information, please refer to our Excel|mate MSD product catalog:

Results per Page

Frequently Asked Questions

HVIL, or High Voltage Interlock, is a safety feature of hybrid and all-electric vehicles that protects people during the assembly, repair, maintenance and use of a vehicle. The HVIL system is designed to protect anyone who may come into contact with high-voltage components throughout the lifecycle of an electric vehicle.

HVIL acts as a type of circuit breaker that sends a warning or error message to the driver if a high-voltage connection becomes loose, disconnected or damaged while the vehicle is in operation. HVIL also helps to protect the driver and occupants of a vehicle in the event of an accident. It is possible to order Amphenol Tuchel Industrial's EV connectors with or without HVIL.

Mechanical coding of connectors is a method of ensuring that connectors can only be connected to each other in a specific way. This is particularly important in applications where there are several connectors with different functions or connections in order to avoid mix-ups or incorrect connections.

The advantages of mechanical coding are manifold. It reduces the risk of misconnections, minimizes the likelihood of damage to equipment due to incorrect connections and improves overall system reliability. At Amphenol Tuchel Industrial, the EV connectors (except the MSD series) are mechanically keyed.
