Manual Service Disconnect XL

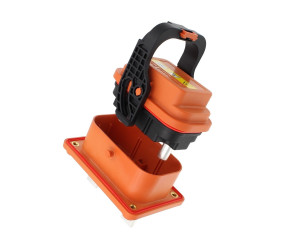

Excel|Mate MSD XL is a high-quality solution for the maintenance of hybrid electric vehicles (HEV) and offers safe disconnection of the high-voltage contacts thanks to a two-stage lever for opening the HVIL circuit (High Voltage Interlock Loop). The high-voltage contact surfaces are designed to be safe to touch.

Features and benefits:

  • Integrated internal HVIL for additional safety

  • Unique cooling structure for optimum performance

  • High current contacts with Amphenol Radsok technology

  • Tool-free disconnection for easy maintenance

  • Flexible mounting options: front or rear

  • Operating temperature from -40 °C to +50 °C

  • IP rating: IP67, IP6K9K for reliable protection

  • UL94V-0 flammability rating for increased safety

  • Complies with USCAR-2, USCAR-37, LV-215 and RoHS standards

  • Rated voltage: 1,500 V DC (max.)

  • Rated current: 300 A

The MSD XL offers an IP67 rating, which means it is dustproof and can be submerged up to 1 m under water, making it ideal for demanding environments.

Typical applications: The MSD XL offers connectors that are an essential tool for service technicians and emergency response teams as it provides a tool-less solution to disconnect the internal high voltage battery and protect against short circuits.

For more information, please refer to our Excel|mate MSD product catalog:

Results per Page

Frequently Asked Questions

HVIL, or High Voltage Interlock, is a safety feature of hybrid and all-electric vehicles that protects people during the assembly, repair, maintenance and use of a vehicle. The HVIL system is designed to protect anyone who may come into contact with high-voltage components throughout the lifecycle of an electric vehicle.

HVIL acts as a type of circuit breaker that sends a warning or error message to the driver if a high-voltage connection becomes loose, disconnected or damaged while the vehicle is in operation. HVIL also helps to protect the driver and occupants of a vehicle in the event of an accident. It is possible to order Amphenol Tuchel Industrial's EV connectors with or without HVIL.

Mechanical coding of connectors is a method of ensuring that connectors can only be connected to each other in a specific way. This is particularly important in applications where there are several connectors with different functions or connections in order to avoid mix-ups or incorrect connections.

The advantages of mechanical coding are manifold. It reduces the risk of misconnections, minimizes the likelihood of damage to equipment due to incorrect connections and improves overall system reliability. At Amphenol Tuchel Industrial, the EV connectors (except the MSD series) are mechanically keyed.
