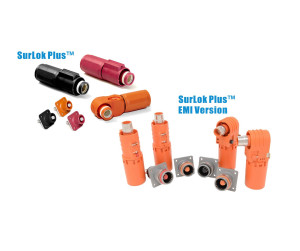

SurLok Plus

Amphenol Industrial SurLok Plus™ Heavy-Duty Power Connectors are IP67-rated, field-installable, high-reliability connectors that offer industry-standard crimp, screw, and busbar termination options. No special torque wrenches are required. SurLok components feature a quick-lock and push-to-release function and a "keyway" design to prevent mismating.

Features:

  • IP67 or IP6K9K depending on size or voltage rating

  • Touch-proof

  • "Keyway" design to prevent incorrect connection

  • Various connection options (threaded, crimped, and busbars)

  • Orange, black, grey, and red color options

  • EMI shielding and HVIL function available (8mm and 14mm)

Key technical data

  • Current range from 50A to 500A

  • Operating voltage range from 1000VDC to 1500VDC

  • ≥100 cycles durability

  • Operating temperature range from -40°C to 125°C

Further Information:


Further varieties of the series

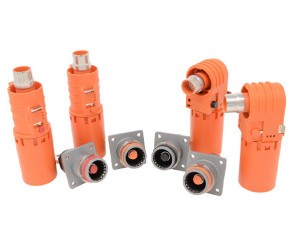

SurLok Plus EMI Connectors

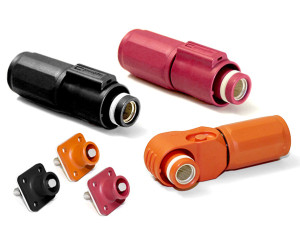

SurLok Plus Connectors

prev
next

All Products of the SurLok Plus Series

Results per Page

Frequently Asked Questions

HVIL, or High Voltage Interlock, is a safety feature of hybrid and all-electric vehicles that protects people during the assembly, repair, maintenance and use of a vehicle. The HVIL system is designed to protect anyone who may come into contact with high-voltage components throughout the lifecycle of an electric vehicle.

HVIL acts as a type of circuit breaker that sends a warning or error message to the driver if a high-voltage connection becomes loose, disconnected or damaged while the vehicle is in operation. HVIL also helps to protect the driver and occupants of a vehicle in the event of an accident. It is possible to order Amphenol Tuchel Industrial's EV connectors with or without HVIL.

Mechanical coding of connectors is a method of ensuring that connectors can only be connected to each other in a specific way. This is particularly important in applications where there are several connectors with different functions or connections in order to avoid mix-ups or incorrect connections.

The advantages of mechanical coding are manifold. It reduces the risk of misconnections, minimizes the likelihood of damage to equipment due to incorrect connections and improves overall system reliability. At Amphenol Tuchel Industrial, the EV connectors (except the MSD series) are mechanically keyed.
