C091 31K008 100 2 U

Description
Male cable connector 8 pole IP69K; solder; silver; straight; screwlocking
IP-class mated
IP69k

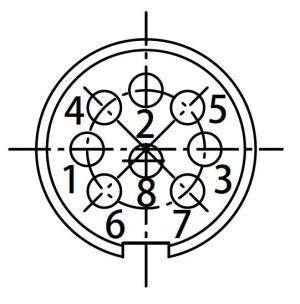

number of positions (w/o PE)
8
rated current (40 °C)
7 (A)
rated voltage
100 (V)
active


12,39 €
price
Total price
619,50 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender male
IP-class mated IP69k
locking system screw coupling
maximum cable diameter (MM) 6
minimum cable diameter (MM) 4
number of positions (w/o PE) 8
part category male cable connector
termination solder pin
Further Characteristics
max. wire gauge 0.5
min. wire gauge 0.05
RoHS Compliant Yes X
Electrical Characteristics

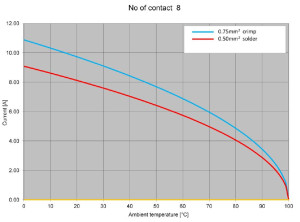

rated current (40 °C) (A) 7
rated voltage (V) 100
Downloads
c091-31k008-100-2-unxc001-01-c3d.stp
m-c091-31kxxx-x00-2-u-rev04-cdr.pdf

Compatible accessory

Matching contacts
