C146 10A007 000 2

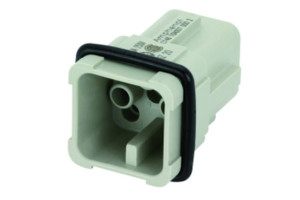

| Description: | C146D; Male Insert 7 Pole; Crimp |
| part category | male insert |
| number of positions (w/o PE) | 7 |
| rated current (40 °C) | 16 A |
| rated voltage | 250 V |
| IP-class mated | IP20 |
| Product Availability |
| Packing Unit: | 10 Pieces |
| Min. Order Quantity: | 10 Pieces |
| Price per Piece: | €3.06 |
| Total Price plus VAT: | €30.60 |
We load the stock please wait a second...
Technical Data
| part category | male insert |
| gender | male |
| IP-class mated | IP20 |
| number of positions (w/o PE) | 7 |
| contact diameter | 1,6 mm |
| rated current (40 °C) | 16 A |
| rated voltage | 250 V |
| max. wire gauge | 2.5 |
| min. wire gauge | 0.14 |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
