| General Characteristics | ||
|---|---|---|
| contact diameter | 1,6 mm | |
| gender | female | |
| IP-class mated | IP20 | |

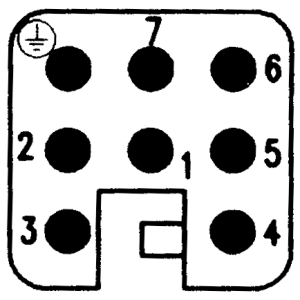

| number of positions (w/o PE) | 7 | |

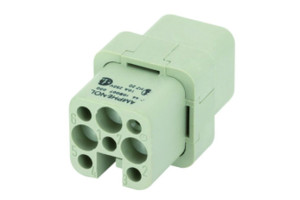

| part category | female insert | |
| termination | crimp | |
| Further Characteristics | ||
| lower temperature | (GC) | -40 |
| mating cycles | 500 | |
| max. wire gauge | 2.5 | |
| min. wire gauge | 0.14 | |
| RoHS Compliant Yes | X | |
| upper temperature | (GC) | 125 |
| Electrical Characteristics | ||
| rated current (40 °C) | (A) | 16 |
| rated voltage | (V) | 250 |
| Downloads | |
|---|---|
| c146-10b007-000-2c3d001-01-c3d.stp | |
| m-c146-10b007-000-2-rev04-cdr.pdf | |
