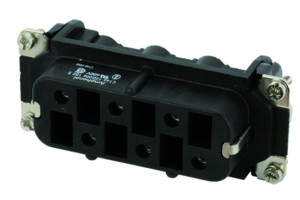

C146 10B006 102 5
| Description: | C146E; Socket Insert 6 Pole; Screw |
| part category | female insert |
| number of positions (w/o PE) | 6 |
| rated current (40 °C) | 42 A |
| rated voltage | 400 V |
| IP-class mated | IP20 |
| Product Availability |
| Packing Unit: | 10 Pieces |
| Min. Order Quantity: | 10 Pieces |
| Price per Piece: | €18.64 |
| Total Price plus VAT: | €186.40 |
We load the stock please wait a second...
Technical Data
| part category | female insert |
| gender | female |
| IP-class mated | IP20 |
| number of positions (w/o PE) | 6 |
| contact diameter | 2,5 mm |
| rated current (40 °C) | 42 A |
| rated voltage | 400 V |
| max. wire gauge | 4 |
| min. wire gauge | 0.5 |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
