| General Characteristics | ||
|---|---|---|
| contact diameter | 1,6 mm | |
| gender | female | |
| IP-class mated | IP65 | |
| number of positions (w/o PE) | 6 | |

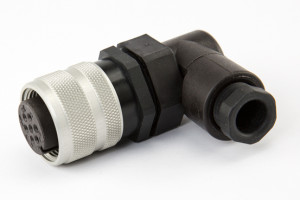

| part category | female cable connector | |
| termination | crimp | |
| Further Characteristics | ||
| max. wire gauge | 1.5 | |
| min. wire gauge | 0.14 | |
| RoHS Compliant Yes | X | |
| Electrical Characteristics | ||
| rated current (40 °C) | (A) | 12 |
| rated voltage | (V) | 150 |
| Downloads | |
|---|---|
| m-c015-10f006-001-1-rev01-cdr.pdf | |
| c015-10f006-001-1nxc001-01-c3d.stp | |
