C016 10E017 002 1

Description

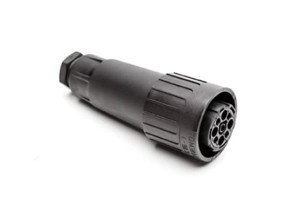

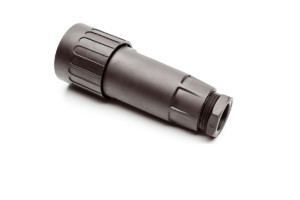

Female cable connector 17 pole; straight - long; crimp; bayonet locking;IP65

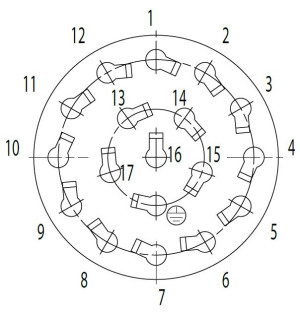

number of positions (w/o PE)
17
rated voltage
100 (V)

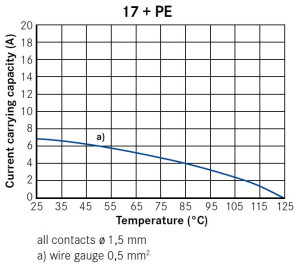

rated current (40 °C)
6 (A)
IP-class mated
IP65
active


7,08 €
price
Total price
354,00 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender female
IP-class mated IP65
number of positions (w/o PE) 17
part category female cable connector
termination crimp
Further Characteristics
max. wire gauge 1
min. wire gauge 0.09
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 6
rated voltage (V) 100
Downloads
ecomate-c16-3-assembly-instruction-mon.PDF
m-c016-10e017-002-1-rev02-cdr.pdf
c016-10e017-002-1-c3d.STP

Compatible accessory

Matching contacts
