C016 20E005 103 2

Description
Female cable connector 5 pole; straight - long; screw; bayonet locking;IP65
number of positions (w/o PE)
5
rated voltage
400 (V)
rated current (40 °C)
25 (A)
IP-class mated
IP65
active


19,32 €
price
Total price
966,00 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 2,5 mm
gender female
IP-class mated IP65
number of positions (w/o PE) 5
part category female cable connector
termination screw
Further Characteristics
max. wire gauge 4
min. wire gauge 4
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 25
rated voltage (V) 400
Downloads
ecomate-c16-3-assembly-instruction-mon.PDF
c016-20e005-103-2-3d-modell-c3d.STP
m-c016-20e005-103-2-rev02-cdr.pdf

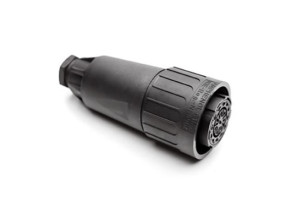

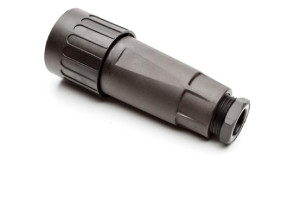

Compatible accessory
