C016 20P004 801 2

Description

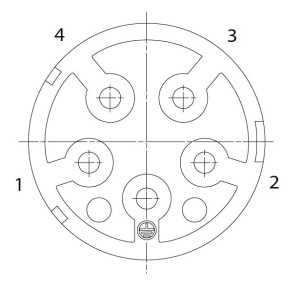

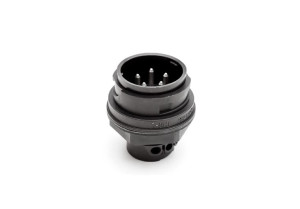

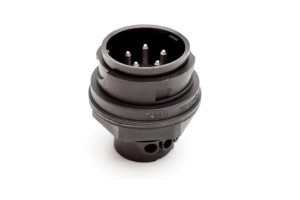

Male panel connector 4 pole; straight; screw; bayonet locking; IP65
number of positions (w/o PE)
4

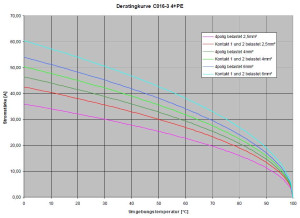

rated current (40 °C)
50 (A)
IP-class mated
IP65
active


13,04 €
price
Total price
652,00 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 2,5 mm
gender male
IP-class mated IP65
number of positions (w/o PE) 4
part category male receptacle
termination screw
Further Characteristics
max. wire gauge 4
min. wire gauge 2.5
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 50
Downloads
c016-20p004-801-2nxc001-01-c3d.stp
m-c016-20p004-801-2-rev06-cdr.pdf
c016-20p004-801-2nxc001-02-c3d.stp

Matching contacts
