| General Characteristics | ||
|---|---|---|
| contact diameter | 1,6 mm | |
| gender | male | |
| IP-class mated | IP67 | |

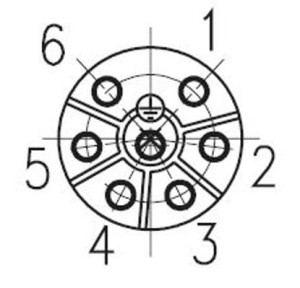

| number of positions (w/o PE) | 6 | |

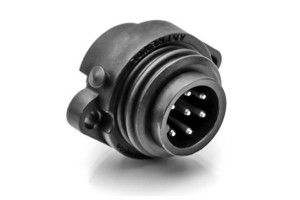

| part category | male receptacle | |
| termination | solder pin | |
| Further Characteristics | ||
| max. wire gauge | 0.75 | |
| min. wire gauge | 0.05 | |
| RoHS Compliant Yes | X | |
| Electrical Characteristics | ||

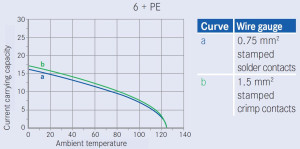

| rated current (40 °C) | (A) | 14 |
| rated voltage | (V) | 250 |
| Downloads | |
|---|---|
| m-c016-30c006-100-12cdr000-03-cdr.pdf | |
| c016-30c006-x00-12nxc001-02-c3d.stp | |
| ecomate-c016m-assembly-instruction-mon.PDF | |
