C091 31D008 201 2 U

Description

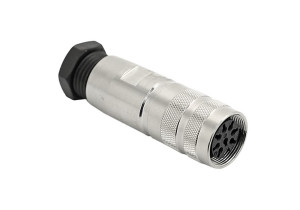

Female cable connector 8 pole IP67; solder; gold; straight; screwlocking
IP-class mated
IP69k
number of positions (w/o PE)
8
rated current (40 °C)
7 (A)
rated voltage
100 (V)
active


10,09 €
price
Total price
504,50 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender female
IP-class mated IP69k
locking system screw coupling
maximum cable diameter (MM) 8
minimum cable diameter (MM) 6
number of positions (w/o PE) 8
part category female cable connector
termination solder pin
Further Characteristics
max. wire gauge 0.5
min. wire gauge 0.05
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 7
rated voltage (V) 100
Downloads
m-c091-31dxxx-x01-2-u-rev04-cdr.pdf
c091-31d008-101-2-unxc001-02-c3d.stp

Compatible accessory

Matching contacts
