C091 31H003 100 2 U

Description
Male cable connector 3 pole IP67; solder; silver; straight; screwlocking
IP-class mated
IP69k
number of positions (w/o PE)
3

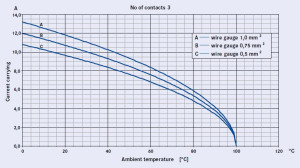

rated current (40 °C)
10 (A)
rated voltage
300 (V)
active


9,77 €
price
Total price
488,50 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender male
IP-class mated IP69k
locking system screw coupling
maximum cable diameter (MM) 6
minimum cable diameter (MM) 4
number of positions (w/o PE) 3
part category male cable connector
termination solder pin
Further Characteristics
max. wire gauge 0.5
min. wire gauge 0.05
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 10
rated voltage (V) 300
Downloads
c091-31h003-100-2nxc001-01-c3d.stp
m-c091-31hxxx-x00-2-u-rev05-cdr.pdf

Compatible accessory
