C091 31N006 100 2 U

Description

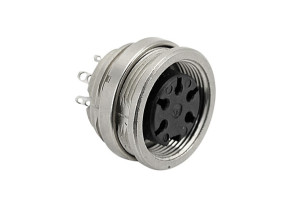

Female panel connector 6 pole IP69K; solder; silver; screw locking
IP-class mated
IP69k
number of positions (w/o PE)
6
rated current (40 °C)
7 (A)
rated voltage
300 (V)
active


4,31 €
price
Total price
215,50 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender female
IP-class mated IP69k
locking system screw coupling
number of positions (w/o PE) 6
part category female receptacle
termination solder pin
Further Characteristics
max. wire gauge 0.5
min. wire gauge 0.05
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 7
rated voltage (V) 300
Downloads
c091-31n006-100-2-unxc001-01-c3d.stp
c091-31n006-100-2-uc3d001-01-c3d.stp
m-c091-31nxxx-x00-2-u-rev03-cdr.pdf
c091-31n006-100-2-unxc001-02-c3d.stp

Compatible accessory
