C091 31T003 100 2 U

Description
Female panel connector 3 pole IP67; solder; silver; screw locking
IP-class mated
IP69k
number of positions (w/o PE)
3

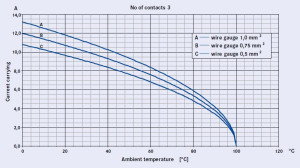

rated current (40 °C)
10 (A)
rated voltage
300 (V)
active


3,78 €
price
Total price
189,00 €
Your net plus VAT
pcs.
The minimum order amount is 100 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender female
IP-class mated IP69k
locking system screw coupling
number of positions (w/o PE) 3
part category female receptacle
termination solder pin
Further Characteristics
max. wire gauge 0.5
min. wire gauge 0.05
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 10
rated voltage (V) 300
Downloads
m-c091-31txxx-x00-2-u-rev03-cdr.pdf
c091-31t003-100-2-unxc001-01-c3d.stp

Compatible accessory
