| General Characteristics | ||
|---|---|---|
| contact diameter | 1,6 mm | |
| gender | male | |
| IP-class mated | IP20 | |

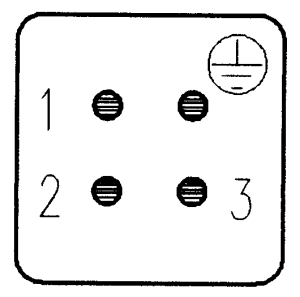

| number of positions (w/o PE) | 3 | |
| part category | male insert | |
| termination | screw | |
| Further Characteristics | ||
| lower temperature | (GC) | -40 |
| max. wire gauge | 1.5 | |
| min. wire gauge | 0.5 | |
| RoHS Compliant Yes | X | |
| upper temperature | (GC) | 100 |
| Electrical Characteristics | ||
| rated current (40 °C) | (A) | 16 |
| rated voltage | (V) | 400 |
| Downloads | |
|---|---|
| m-c146-10a003-002-4-rev06-cdr.pdf | |
| c146-10a003-002-4c3d001-01-c3d.stp | |
