C146 10A006 102 5

Description

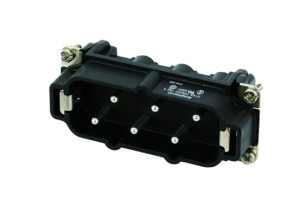

C146E; Male Insert 6 Pole; Screw
rated current (40 °C)
42 (A)

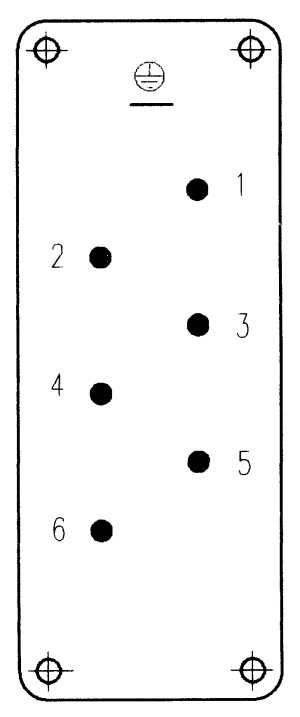

number of positions (w/o PE)
6
rated voltage
400 (V)
IP-class mated
IP20
active


16,38 €
price
Total price
163,80 €
Your net plus VAT
pcs.
The minimum order amount is 10 pcs.; packing unit 10 pcs.
Check availability

General Characteristics
contact diameter 2,5 mm
gender male
IP-class mated IP20
number of positions (w/o PE) 6
part category male insert
termination screw
Further Characteristics
lower temperature (GC) -40
max. wire gauge 6
min. wire gauge 0.5
RoHS Compliant Yes X
upper temperature (GC) 125
Electrical Characteristics
rated current (40 °C) (A) 42
rated voltage (V) 400
Downloads
m-c146-10a006-102-5-rev03-cdr.pdf
c146-10a006-102-5c3d001-02-c3d.stp
c146-10a006-102-5c3d001-01-c3d.stp

Compatible accessory

Compatible cases

Matching contacts
