C146 10B003 002 4

Description

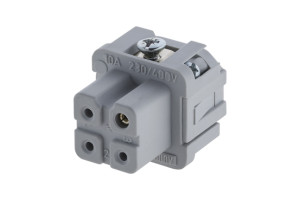

Female insert 3 pole; screw
rated current (40 °C)
16 (A)
number of positions (w/o PE)
3
rated voltage
400 (V)
IP-class mated
IP20
active


4,73 €
price
Total price
47,30 €
Your net plus VAT
pcs.
The minimum order amount is 10 pcs.; packing unit 10 pcs.
Check availability

General Characteristics
contact diameter 1,6 mm
gender female
IP-class mated IP20
number of positions (w/o PE) 3
part category female insert
termination screw
Further Characteristics
lower temperature (GC) -40
max. wire gauge 1.5
min. wire gauge 0.5
RoHS Compliant Yes X
upper temperature (GC) 100
Electrical Characteristics
rated current (40 °C) (A) 16
rated voltage (V) 400
Downloads
c146-10b003-002-4c3d001-01-c3d.stp
m-c146-10b003-002-4-rev06-cdr.pdf

Compatible accessory

Compatible cases
