C146 10B010 000 1

Description

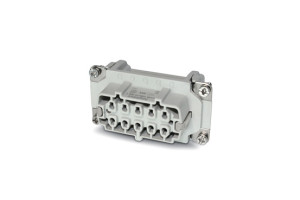

Female insert 10 pole; crimp
rated current (40 °C)
10 (A)
number of positions (w/o PE)
10
rated voltage
500 (V)
IP-class mated
IP20
active


4,68 €
price
Total price
46,80 €
Your net plus VAT
pcs.
The minimum order amount is 100 pcs.; packing unit 10 pcs.
Check availability

General Characteristics
contact diameter 2,5 mm
gender female
IP-class mated IP20
number of positions (w/o PE) 10
part category female insert
termination crimp
Further Characteristics
lower temperature (GC) -40
max. wire gauge 4
min. wire gauge 0.5
RoHS Compliant Yes X
upper temperature (GC) 125
Electrical Characteristics
rated current (40 °C) (A) 10
rated voltage (V) 500
Downloads
m-c146-10b0xx-000-1cdr000-00-cdr.pdf
c146-10b010-000-1c3d001-01-c3d.stp

Compatible accessory

Compatible cases

Matching contacts
