| General Characteristics | ||
|---|---|---|
| contact diameter | 1,6 mm | |
| gender | female | |
| IP-class mated | IP20 | |
| number of positions (w/o PE) | 4 | |

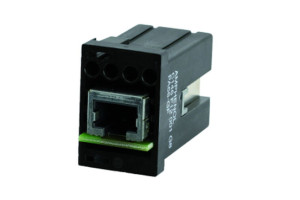

| part category | female module | |
| termination | crimp | |
| Further Characteristics | ||
| lower temperature | (GC) | -20 |
| RoHS Compliant Yes | X | |
| upper temperature | (GC) | 80 |
| Electrical Characteristics | ||
| rated current (40 °C) | (A) | 13 |
| rated voltage | (V) | 400 |
| Downloads | |
|---|---|
| c146-f12-001-g8nxc001-02-c3d.stp | |
| ce-certificate-c146m-crt.pdf | |
| c146-f12-001-g8c3d001-01-c3d.stp | |
| m-c146-f12-001-g8-rev03-cdr.pdf | |
