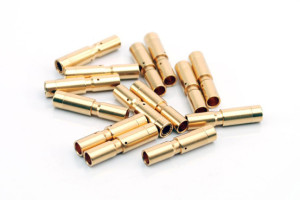

SC000039
| Description: | socket contact machined 3,6 mm for 4,00-10,00mm² |
| rated current (40 °C) | 75 A |
| Product Availability |
| Packing Unit: | 500 Pieces |
| Min. Order Quantity: | 500 Pieces |
| Price per Piece: | €1.74 |
| Total Price plus VAT: | €870.00 |

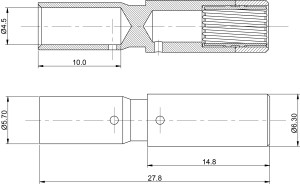

Technical Data
| part category | socket contact |
| gender | female |
| termination | crimp |
| contact diameter | 3,6 mm |
| rated current (40 °C) | 75 A |
| max. wire gauge | 10 |
| min. wire gauge | 4 |
Frequently Asked Questions
The following products are required for a complete parts list:
Cable connector and counterpart of the opposite gender (coupling/device part)
Crimp contacts
Hand crimping tool or pneumatic tool
If you have special requirements regarding the number of cable outlets or their diameter, we will be happy to check the realization of a special version on the basis of the cable datasheet.
Our motion|grade connectors come with a silver-colored metal housing as standard. Alternatively, we will check the color matching of the various components in the desired color for corresponding order quantities.
Our motion|grade connectors are approved with protection class IP67 and are therefore waterproof. The requirement of 30 minutes at a water depth of 1 m is only a minimum requirement. On request, we can test the tightness for special water depths and dwell times.
