T 3506 000 U

Description

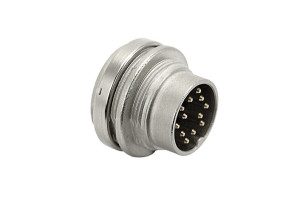

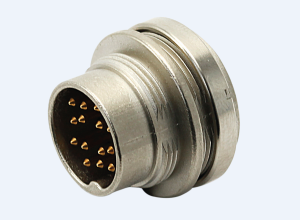

Male panel connector 8 pole IP40; solder; silver; screw locking
IP-class mated
IP40
number of positions (w/o PE)
8
rated current (40 °C)
5 (A)
rated voltage
100 (V)
active


3,90 €
price
Total price
195,00 €
Your net plus VAT
pcs.
The minimum order amount is 50 pcs.; packing unit 50 pcs.
Check availability

General Characteristics
contact diameter 1,5 mm
gender male
IP-class mated IP40
locking system screw coupling
number of positions (w/o PE) 8
part category male receptacle
termination solder pin
Further Characteristics
max. wire gauge 0.5
min. wire gauge 0.05
RoHS Compliant Yes X
Electrical Characteristics
rated current (40 °C) (A) 5
rated voltage (V) 100
Downloads
t-3506-000-unxc001-02-c3d.stp
