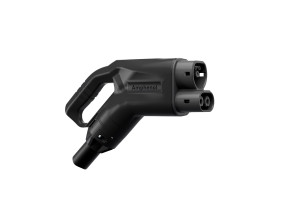

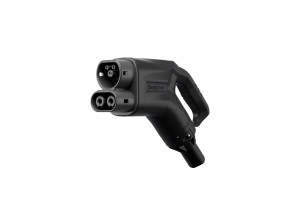

CCON 2NPFC 110K030N A
| Description: | CCS2 charging cable 380A 3m + metering |
| rated current (40 °C) | 380 A |
| Boost mode up to | 700 A |
| IP-class mated | IP44 |
| IP-class unmated | IP69 (Housing) |
| Product Availability |
| Packing Unit: | 1 Pieces |
| Min. Order Quantity: | 1 Pieces |
| Price per Piece: | €750.21 |
| Total Price plus VAT: | €750.21 |
We load the stock please wait a second...
Technical Data
| Charging standard | IEC 62196-1, IEC 62196-3, IEC 62893-4-1 |
| mating cycles | 10,000 |
| Lower operating temperatur | -30 GC |
| Upper operating temperatur | 40 GC |
| operation temperature (max.) | +55°C (at current reduction) |

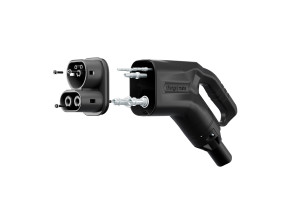

| Replaceability | contacts + mating face |
| IP-class mated | IP44 |
| IP-class unmated | IP69 (Housing) |
| rated current (40 °C) | 380 A |
| rated voltage | 1,000 V |
| Boost mode up to | 700 A |
| Temperature sensors | PT1000 |
| PP contact connected | No |
| Metering-wire-measurement | Yes |
| cable length | 3,000 MM |
| Cable type | 4x55 + 1G6 + 4x2x0,75mm² |
| cable diameter | 34.6 MM |
| RoHS compliance status | compliant with exception |
