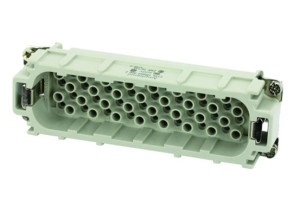

C146 10A064 060 2
| Description: | C146D; Male Insert 64 Pole; Crimp |
| part category | male insert |
| number of positions (w/o PE) | 64 |
| rated current (40 °C) | 10 A |
| rated voltage | 250 V |
| IP-class mated | IP20 |
| Product Availability |
| Packing Unit: | 10 Pieces |
| Min. Order Quantity: | 10 Pieces |
| Price per Piece: | €10.28 |
| Total Price plus VAT: | €102.80 |
We load the stock please wait a second...
Technical Data
| part category | male insert |
| gender | male |
| IP-class mated | IP20 |
| number of positions (w/o PE) | 64 |
| contact diameter | 1,6 mm |
| rated current (40 °C) | 10 A |
| rated voltage | 250 V |
| max. wire gauge | 2.5 |
| min. wire gauge | 0.14 |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
| SCIP Number | 0941252d-aba8-4fd3-a0e5-e07cd048c5b5 |
| CAS Number | 29420-49-3 |
| SVHC ECHA Name | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
