AT06-08SA-RD01

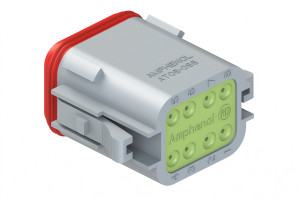

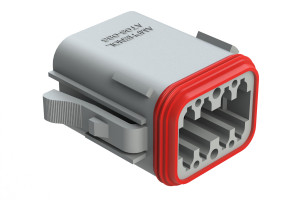

Description: | Female Cable Connector 8pol A-Key, Reduced |
rated current (40 °C) | 13 A |
number of positions (w/o PE) | 8 |
rated voltage | 250 V |
IP-class mated | IP67 |
Product Availability |
Packing Unit: | 480 Pieces |
Min. Order Quantity: | 480 Pieces |
Price per Piece: | €1.26 |
Total Price plus VAT: | €604.80 |
We load the stock please wait a second...
Technical Data
part category | female cable connector |
number of positions (w/o PE) | 8 |
gender | female |
IP-class mated | IP67 |
contact diameter | #16 |
rated current (40 °C) | 13 A |
rated voltage | 250 V |
max. wire gauge | 2.5 |
min. wire gauge | 0.34 |
upper temperature | 125 GC |
lower temperature | -55 GC |
Wedge
Disclaimer: No liability is accepted for the correctness and completeness of the suggested accessories.
