AT04-08PA-PM12

Data Overview

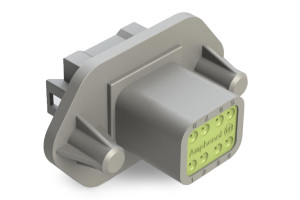

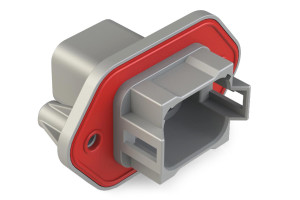

Description: Male Receptacle 8pol A-Key, Sealed Flange, Reduced Dia. Seal
rated current (40 °C) 13 A
number of positions (w/o PE) 8
rated voltage 250 V
IP-class mated IP67

Product Availability and Price

Product Availability
Packing Unit: 300 Pieces
Min. Order Quantity: 300 Pieces
Price per Piece: €1.95
Total Price plus VAT: €585.00
Send Request
We load the stock please wait a second...

Technical Data

part category male receptacle
number of positions (w/o PE) 8
gender male
IP-class mated IP67
contact diameter #16
rated current (40 °C) 13 A
rated voltage 250 V
max. wire gauge 2.5
min. wire gauge 0.34
upper temperature 125 GC
lower temperature -55 GC
