ATM04-12PA

Data Overview

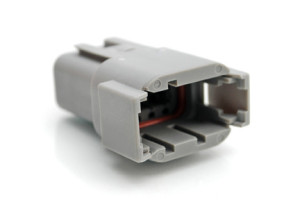

Description: Male Cable Connector 12pol A-Key
rated current (40 °C) 7.5 A
number of positions (w/o PE) 12
rated voltage 250 V
IP-class mated IP67

Product Availability and Price

Product Availability
Packing Unit: 200 Pieces
Min. Order Quantity: 200 Pieces
Price per Piece: €1.52
Total Price plus VAT: €304.00
Send Request
We load the stock please wait a second...

Technical Data

part category male cable connector
number of positions (w/o PE) 12
gender male
IP-class mated IP67
contact diameter #20
rated current (40 °C) 7.5 A
rated voltage 250 V
max. wire gauge 1.5
min. wire gauge 0.34
upper temperature 125 GC
lower temperature -55 GC
