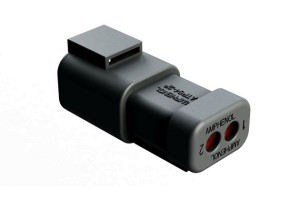

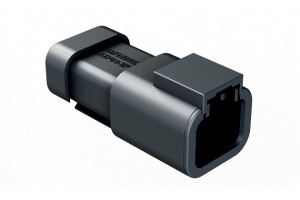

ATP04-2P-EC01BK
| Description: | Male Cable Connector 2pol, End Cap |
| number of positions (w/o PE) | 2 |
| gender | male |
| rated current (40 °C) | 25 A |
| IP-class mated | IP67 |
| Product Availability |
| Packing Unit: | 400 Pieces |
| Min. Order Quantity: | 1,200 Pieces |
| Price per Piece: | €1.23 |
| Total Price plus VAT: | €1,476.00 |
We load the stock please wait a second...
Technical Data
| part category | male cable connector |
| number of positions (w/o PE) | 2 |
| gender | male |
| IP-class mated | IP67 |
| contact diameter | #12 |
| wedge | AWP-2P all |
| rated current (40 °C) | 25 A |
| rated voltage | 250 V |
| max. wire gauge | 6 |
| min. wire gauge | 2 |
| upper temperature | 125 GC |
| lower temperature | -55 GC |
