C016 10C017 000 1

Data Overview

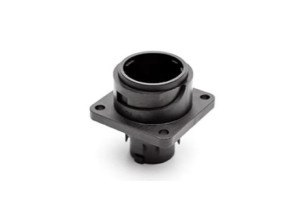

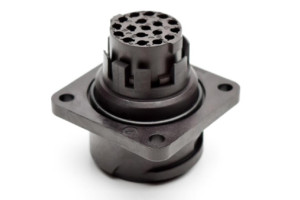

Description: Male Receptacle; Size 1; Flange; 17+PE; Crimp; IP65
rated current (40 °C) 7 A
number of positions (w/o PE) 17
rated voltage 100 V
IP-class mated IP65

Product Availability and Price

Product Availability
Packing Unit: 25 Pieces
Min. Order Quantity: 25 Pieces
Price per Piece: €4.13
Total Price plus VAT: €103.25
Send Request
We load the stock please wait a second...

Technical Data

part category male receptacle
gender male
locking system bayonet ring
assembly of receptacle flange assembly
lower temperature -40 GC
upper temperature 125 GC
IP-class mated IP65
rated voltage 100 V

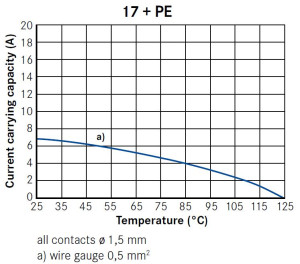

rated current (40 °C) 7 A

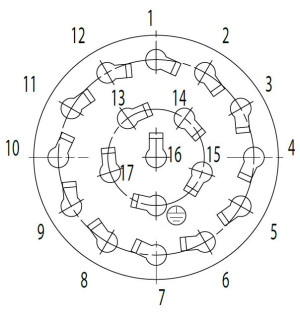

number of positions (w/o PE) 17
number of PE contacts 1
min. wire gauge 0.09
max. wire gauge 1.5
shielding no
coding position POS. 1
part number protection cap C016 00U000 021 1
comments Coding Tool: FH 0000 016

Frequently Asked Questions

The following components are required for a complete solution:

  • Cable connector and counterpart of the opposite sex (socket/device part)

  • depending on the application: protective cover

For crimp versions, the crimp contacts and the crimping tool must be ordered separately. Either a hand crimping tool consisting of three components or a complete service crimping tool can be ordered for this purpose.

Thanks to the PE contact and representative VDE and CSA approval, eco|mate C16 connector systems can also be used as plug-in devices. Compared to plug connections, this enables plugging and unplugging under load. The layouts 8+PE; 14+PE; 17+PE; 12+3+PE (size 1) and 5+PE; 12+PE;14+PE; 19+PE (size 2) were tested for the approvals. Please contact us for further information.

The portfolio does not include solutions for direct PCB connection as standard. Alternatively, our flying pigtail assemblies with PCB connectors allow flexibility and failure tolerance. Please let us know your requirements!

Due to the plastic housing, the shielding braid of the cable cannot be connected to the connector housing. If shielding is required, we refer to metal connectors from the eco|mate RM series, for example. If the application permits and the shielding attenuation requirements are only low, it is also possible to transmit the shield via one of the contacts.

Environmental influences often cause oxidation on the surface of silver-coated contacts, which is indicated by a dark coloration. The oxide layer has no effect on functionality and is automatically rubbed off when plugged in. In use, the oxide layer usually burns out at a load > 24V or 200-300mA. If smaller currents flow, we recommend gold-plated contacts to keep the contact resistance low in the long term.

C16 connectors can be mechanically coded in several positions. With the tools FH 0000 016 (housing size 1) or FH 0002 016 (housing size 2), the user can implement coding himself. We supply pre-coded connectors ex works depending on your yearly demand. Further information can be found in the C16 assembly instructions.

The internal cable clamp is a further safety feature and prevents the wires from being pulled out or the crimp from being damaged under high tensile force. We supply the connectors both with (longer housing) and without internal clamp (shorter housing).

The polyamide grades used are ideally suited for outdoor applications. The use of carbon black as a pigment improves the UV resistance so that a durability of well over five years can be achieved. The reinforcing glass fibers may cause minimal surface erosion, but this can be neglected. The functionality of the connector systems is fully maintained. The materials used for the housing have an f1 listing.
