C146 10A010 102 4

Data Overview

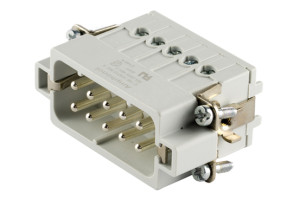

Description: C146A; Male Insert 10 Pole; Screw
rated current (40 °C) 16 A
number of positions (w/o PE) 10
rated voltage 250 V
IP-class mated IP20

Product Availability and Price

Product Availability
Packing Unit: 10 Pieces
Min. Order Quantity: 10 Pieces
Price per Piece: €7.64
Total Price plus VAT: €76.40
Send Request
We load the stock please wait a second...

Technical Data

part category male insert
gender male
IP-class mated IP20
number of positions (w/o PE) 10
contact diameter 1,6 mm
rated current (40 °C) 16 A
rated voltage 250 V
max. wire gauge 2.5
min. wire gauge 0.5
upper temperature 100 GC
lower temperature -40 GC
