C146 10B025 500 2

Data Overview

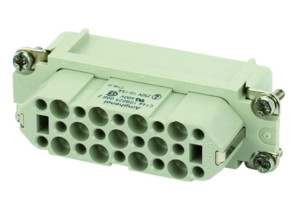

Description: C146D; Socket Insert 25 Pole; Crimp
rated current (40 °C) 10 A
number of positions (w/o PE) 25
rated voltage 250 V
IP-class mated IP20

Product Availability and Price

Product Availability
Packing Unit: 10 Pieces
Min. Order Quantity: 10 Pieces
Price per Piece: €6.85
Total Price plus VAT: €68.50
Send Request
We load the stock please wait a second...

Technical Data

part category female insert
gender female
IP-class mated IP20
number of positions (w/o PE) 25
contact diameter 1,6 mm
rated current (40 °C) 10 A
rated voltage 250 V
max. wire gauge 2.5
min. wire gauge 0.14
upper temperature 100 GC
lower temperature -40 GC
