C146 10B016 002 1

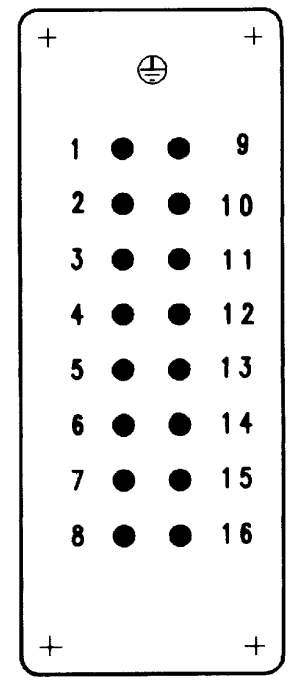

| Description: | C146E; Socket Insert 16 Pole; Screw |
| part category | female insert |
| number of positions (w/o PE) | 16 |
| rated current (40 °C) | 16 A |
| rated voltage | 500 V |
| IP-class mated | IP20 |
| Product Availability |
| Packing Unit: | 10 Pieces |
| Min. Order Quantity: | 10 Pieces |
| Price per Piece: | €8.44 |
| Total Price plus VAT: | €84.40 |
We load the stock please wait a second...
Technical Data
| part category | female insert |
| gender | female |
| IP-class mated | IP20 |
| number of positions (w/o PE) | 16 |
| contact diameter | 2,5 mm |
| rated current (40 °C) | 16 A |
| rated voltage | 500 V |
| max. wire gauge | 4 |
| min. wire gauge | 0.5 |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
| SCIP Number | 0e1a9b3d-15f8-4d3a-9171-3cb0c0394afc, 0e1a9b3d-15f8-4d3a-9171-3cb0c0394afc |
| CAS Number | 0007439921, 0029420493 |
| SVHC ECHA Name | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
