C146 10A032 500 10

Data Overview

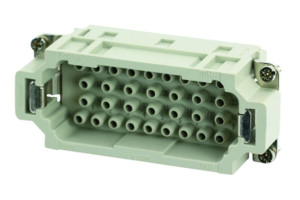

Description: C146E; Male Insert 32 Pole; Crimp
rated current (40 °C) 16 A
number of positions (w/o PE) 32
rated voltage 500 V
IP-class mated IP20

Product Availability and Price

Product Availability
Packing Unit: 10 Pieces
Min. Order Quantity: 10 Pieces
Price per Piece: €12.26
Total Price plus VAT: €122.60
Send Request
We load the stock please wait a second...

Technical Data

part category male insert
gender male
IP-class mated IP20
number of positions (w/o PE) 32
contact diameter 2,5 mm
rated current (40 °C) 16 A
rated voltage 500 V
max. wire gauge 4
min. wire gauge 0.5
upper temperature 125 GC
lower temperature -40 GC
