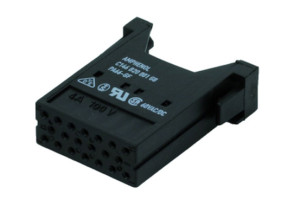

C146 B20 001 G8

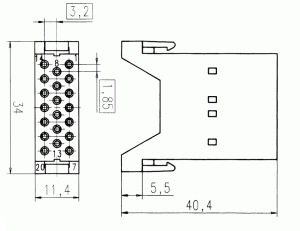

| Description: | C146M; Female Module 20 Pole; Crimp |
| part category | female module |
| number of positions (w/o PE) | 20 |
| rated current (40 °C) | 5 A |
| rated voltage | 63 V |
| IP-class mated | IP20 |
| Product Availability |
| Packing Unit: | 50 Pieces |
| Min. Order Quantity: | 50 Pieces |
| Price per Piece: | €0.80 |
| Total Price plus VAT: | €40.00 |
We load the stock please wait a second...
Technical Data
| part category | female module |
| gender | female |
| IP-class mated | IP20 |
| number of positions (w/o PE) | 20 |
| contact diameter | 1,0 mm |
| rated current (40 °C) | 5 A |
| rated voltage | 63 V |
| max. wire gauge | 0.5 |
| min. wire gauge | 0.09 |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
