C146 A03 801 E8

Data Overview

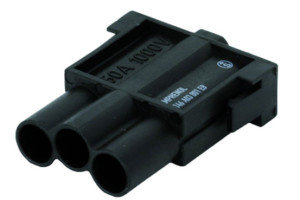

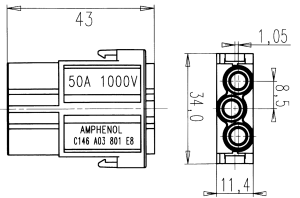

Description: C146M; Male Module 3 Pole; Crimp
rated current (40 °C) 70 A
number of positions (w/o PE) 3
rated voltage 1000 V
IP-class mated IP20

Product Availability and Price

Product Availability
Packing Unit: 50 Pieces
Min. Order Quantity: 50 Pieces
Price per Piece: €0.67
Total Price plus VAT: €33.50
Send Request
We load the stock please wait a second...

Technical Data

part category male module
gender male
IP-class mated IP20
number of positions (w/o PE) 3
contact diameter 3,6 mm
rated current (40 °C) 70 A
rated voltage 1000 V
max. wire gauge 10
min. wire gauge 1.5
upper temperature 125 GC
lower temperature -40 GC
