C146 10B016 002 3

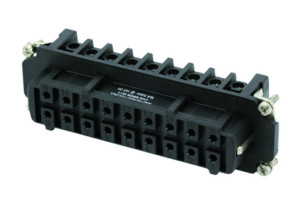

| Description: | C146H; Socket Insert 16 Pole; Screw |
| part category | female insert |
| number of positions (w/o PE) | 16 |
| rated current (40 °C) | 16 A |
| rated voltage | 660 V |
| IP-class mated | IP20 |
| Product Availability |
| Packing Unit: | 10 Pieces |
| Min. Order Quantity: | 10 Pieces |
| Price per Piece: | €21.26 |
| Total Price plus VAT: | €212.60 |
We load the stock please wait a second...
Technical Data
| part category | female insert |
| gender | female |
| IP-class mated | IP20 |
| number of positions (w/o PE) | 16 |
| contact diameter | 2,5 mm |
| rated current (40 °C) | 16 A |
| rated voltage | 660 V |
| max. wire gauge | 4 |
| min. wire gauge | 0.5 |
